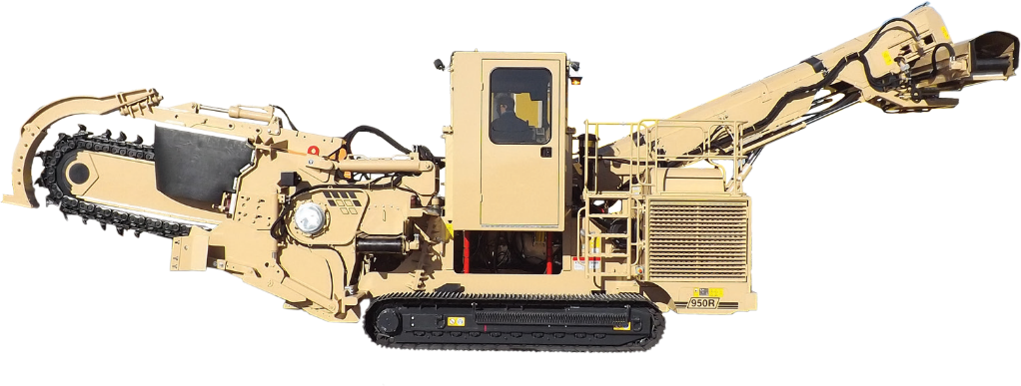

The standard features on the 950R are a pressurized cab with air conditioning, heating and sound suppression. An elevating cab module with roll over protection (ROPS). Cab and compartment security locks. Vibration isolator mount: used on engine, radiator, oil cooler, exhaust silencer and operator station. Fuel and hydraulic tank: pressurized with locking caps. Equipped with a hydraulic transmission and a 24V electrical system.
The engine is a model CAT C7.1 ACERT Tier 4/Stage V with max horsepower of 275hp. The fuel tank capacity is 132 gallons. Fuel consumption running on a regular load will average 14.5 gal/hr.
The crawler drive is dual path, hydraulic drive, planetary transmissions with a single lever steering, and single lever direction. Also equipped with wet disc brake.
This 950R comes with the option of three different back ends depending on the jobsite and project requirements.
GALLERY GOES HERE (IF ANY)
R450ACC Wheel
Max Depth - 1' 5" (45cm)
Width Segments - 1,77"-2,36"-3,14"(4,5-6-8 cm)
PCD Disk
Max Depth - 9,84" (25cm)
Width Segments:
PCD Disk - 0,51"-0,74"(1,3-1,9 cm)
Cutter bits disk - 0,98"-1,18"-1,37" (2,5-3-3,5 cm)
